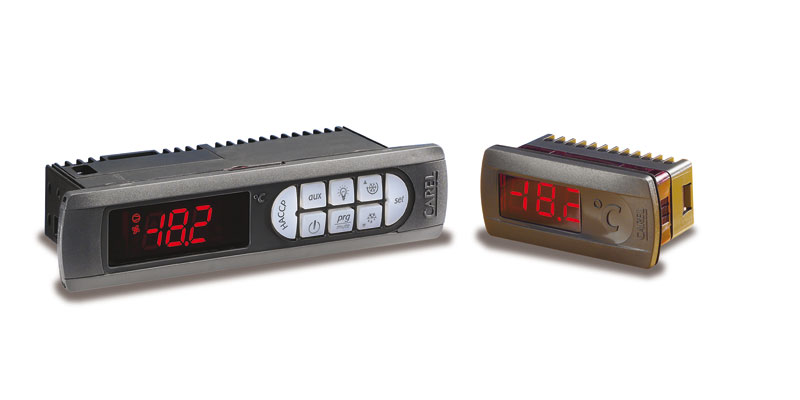

The Powercompact series is particularly suitable for refrigerated counters in the catering field and for refrigerated display cases for pastry shops and ice cream parlors.
There are several versions available, from the single-relay version for static refrigerated units with normal temperature, with control only on the compressor, to the 5-relay version for ventilated, low temperature units, with compressor control, resistor or hot gas defrost, evaporation fans and two multi-function auxiliary outputs. Most of the models are equipped with a 2Hp relay for compressor control, a 16A relay for defrost control, an 8A relay for evaporation fans and auxiliary outputs control.
Powercompact small: the small version, which occupies only 40mm in depth inside the unit, is the perfect solution for applications where the space available for housing the control is particularly limited. Available in several versions, up to the 4-relay version with compressor controlled by means of a 30A relay.
The Powercompact series is part of the ir33 platform and therefore it shares all its features; in addition to the common setting algorithms, Powercompact has some additional features: "Direct" (cold) and "Reverse" (warm) operation with neutral zone, control of a second step regulated compressor, auxiliary evaporator control, condenser fan control, adjustment with supply and return probe with weighted average, display case/cell light control.
For control of the parameters, CAREL offers for free a simple configuration software, called Visual Parameter Manager (VPM), downloadable from: ksa.carel.com
EN 13485, air, S,A,1, -30°C +30°C
The ir33 series, equipped with standard CAREL NTC probe, meets the specifications of the EN 13485 standard (thermometers for measuring the air temperature for applications on storage and distribution units for chilled, frozen, deep-frozen/quick-frozen food and ice cream) set as mandatory for the storage of frozen and deep frozen food by the EC Regulation 37/2005 of January 12, 2005.
- Large display: powercompact is fitted with a very powerful and attractive display, featuring 3 digits plus decimal point, a plus/minus sign and an icon, simplifying the reading of the values and the operating status. The ergonomic silicon keypad allows direct access to the HACCP, light, defrost and continuous cycle functions.
- RTC: this accessory is used to log detailed data, as well as to program real time defrost cycles (rather than preset defrost intervals). The RTC ensure compliance with the HACCP standards.
- Connection terminal block: powercompact features a power terminal block for the direct connection of the loads, without the presence of the common terminal. In addition, the use of relays with changeover contacts ensures maximum flexibility in the connections to the panel. The terminal block is available with screw terminals or removable spade connectors so as to satisfy the needs of all manufacturers and installers.
* Entries are ordered by date
Code Description Language Date * Release Code +0500018FR Description powercompact - Modéle PB00 Language FRE Date 07/02/2018 Release 3.3 Code +0500018IT Description powercompact Language ITA Date 07/02/2018 Release 3.3 Code +0500018DE Description powercompact Language GER Date 07/02/2018 Release 3.3 Code +0500018EN Description powercompact Language ENG Date 07/02/2018 Release 3.3 Code +0500019IT Description powercompact small Language ITA Date 07/02/2018 Release 3.4 Code +0500019EN Description powercompact small Language ENG Date 07/02/2018 Release 3.4 Code +0500018PT Description powercompact- Modelos PB00(S,Y,F,C,H)(0,6)(0,E,A,H)(N,R,C,B,A,M,L,T,P,Q,S,U,V,X,Y,Z)(1,2,3,4,5,A,B,C,D,E,F)0 Language POR Date 07/02/2018 Release 3.3 Code +0500018ES Description powercompact Language SPA Date 07/02/2018 Release 3.3
* Entries are ordered by date
Code Description Language Date * Release Code +030220447 Description ir33 platform conexiones / connections Language ENG SPA Date 31/05/2016 Release 2.3 Code +03C220445 Description ir33 platform Language CHI Date 27/04/2011 Release 2.3 Code +030220445 Description ir33 platform connessioni / connections Language ENG ITA Date 27/04/2011 Release 2.3 Code +030220449 Description ir33 platform Language RUS Date 16/06/2010 Release 2.5 Code +030220444 Description ir33 platform Language SPA Date 16/06/2010 Release 2.5 Code +030220441 Description ir33 platform Language ENG Date 16/06/2010 Release 2.5 Code +030220440 Description ir33 platform Language ITA Date 16/06/2010 Release 2.5
