µC3 NA

MCH3*
µC3 NA
  • General characteristics

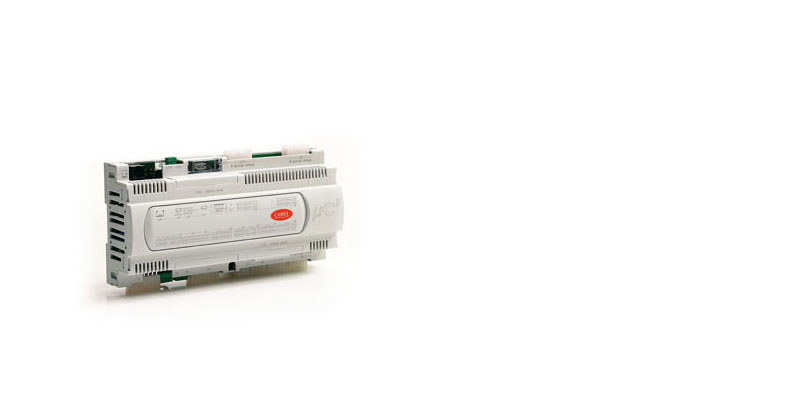

    The µC3 series is the top of the µC range.
    It has been designed to satisfy the most demanding and important manufacturers in the sector who require increasingly high performance and competitive products. µC3 can be installed with or without the DIN rail case, the wiring system is plug-in with Molex® connectors. The case guarantees a high index of protection, reduces the risk of electrostatic discharges and reduces the assembly times for the entire system.
     µC3 can manage up to six hermetic compressors or two semi-hermetic compressors in a maximum of 2 circuits, with the possibility to control one electronic expansion valve per circuit. With the large number of inputs and outputs, it can completely control air/water
    units, chillers and heat pumps, water/water units with reversal of the gas circuit, air- and water-cooled units with and without reverse cycle, air/air units, and air/air heat pumps.
    Using an optional RS485 communication board, µC3 can be interfaced with the Carel PlantVisor supervisory system, or alternatively, using the embedded Modbus® RTU protocol, ensures open connectivity to third-party BMS systems. Furthermore, to ensure greater safety and simpler maintenance and monitoring of the air-conditioning systems, µC3, using the optional RS232 board, can receive and send SMS messages via a GSM modem. µC3 has a built-in tLAN port for the connection of the local LED terminal or the driver for electronic expansion valves (alternatives).



Documentation

Technical

  • Manuals
    Code Description Language Date * Release
    Code +030220430

    Description μchiller 3

    Language ITA

    Date 03/06/2014

    Release 1.7

    Code +030220431

    Description μchiller 3

    Language ENG

    Date 03/06/2014

    Release 1.7

    Code +030220435

    Description μchiller 3

    Language RUS

    Date 03/06/2014

    Release 1.7

    Code +030220460

    Description μAM: controllo elettronico per condizionamento/ Air-Conditioning electronic controller

    Language ENG  ITA

    Date 08/05/2007

    Release 1.0

    Code +03C220431

    Description µC3 标准压缩机组 单/双回路

    Language CHI

    Date 11/10/2005

    Release 1.0

  • Technical Leaflets
    Code Description Language Date * Release
    Code +050000740

    Description ADE***10** μAM – Controllore per μe-dronic / μe-dronic controller

    Language ENG  ITA

    Date 18/04/2013

    Release 1.3

    Code +05C001070

    Description μC3 - 用于控制单和/或双电路机组的电子设备 / Electronic device for controlling single and/or two-circuit units

    Language CHI  ENG

    Date 09/03/2006

    Release 1.1

    Code +050001070

    Description μC3 - Dispositivo elettronico per controllo unità mono e/o bi-circuito / Electronic device for controlling single and/or two-circuit units

    Language ENG  ITA

    Date 09/03/2006

    Release 1.1


Commercial

  • Brochure
    Code Description Language Date * Release
    Code +302239365

    Description Soluzioni integrate per chiller e pompe di calore di media e piccola taglia

    Language ITA

    Date 01/03/2006

    Release 1.0

    Code +302239366

    Description Integrated solutions for small and medium size chiller/heat pumps

    Language ENG

    Date 01/03/2006

    Release 1.0

    Code +302239369

    Description Комплексные решения для чиллеров/тепловых насосов малого и среднего размера

    Language RUS

    Date 01/03/2006

    Release 1.0

    Code +30C239611

    Description μC sistema: 系列

    Language CHI

    Date 01/10/2005

    Release 1.0

    Code +302239611

    Description μC sistema: the range

    Language ENG

    Date 01/10/2005

    Release 1.0

    Code +302239613

    Description μC sistema: Die Produktbandbreite

    Language GER

    Date 01/10/2005

    Release 1.0

  • Success Story
    Code Description Language Date * Release
    Code +402200110

    Description Development of an advanced control system for chillers

    Language ENG

    Date 01/03/2006

    Release 1.0
