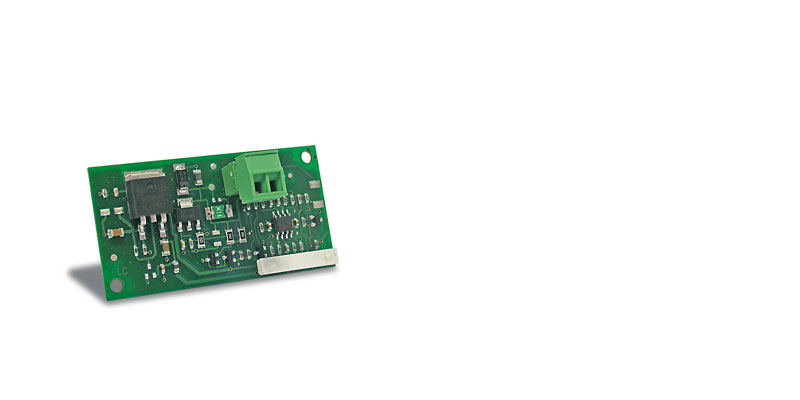

Belimo card

PCO1xxMPB0
Belimo card

  • General characteristics

    The Belimo FieldBus card is used to connect the pCO sistema to a maximum of 8 servo controls that communicate using the MP-BUS® protocol, so as to collect information from these or send them commands

    Belimo is a communication protocol developed by the same-name leader in the construction of servo controls for HVAC devices, such as dampers, valves, etc. Reference website: belimo.com

    The Belimo FieldBus card is compatible with the entire range of pCOSistema controllers that feature a Fieldbus card slot: pCO1, pCO3, pCO5, pCO5+



Documentation

Technical

  • Technical Leaflets
    * Entries are ordered by date
    Code Description Language Date * Release
    Code +050003270

    		 Description PCO100TLN0 / PCO100MPB0 / PCO100FD10 / PCO100FD30 scheda seriale tLAN, MP-Bus e RS485 per pCO1/ pCO3/pCO5 / tLAN, MP-Bus and RS485 serial card for pCO1/ pCO3/pCO5

    		 Language ENG  ITA

    		 Date 01/12/2011

    		 Release 1.2
