- 4 DIN mounting version
- 10 universal inputs/outputs
- 6 Relay Outputs
- Integrated RS485 port
- Embedded Unipolar EXV (Enhanced model)
- Ultracap module management (Enhanced model)

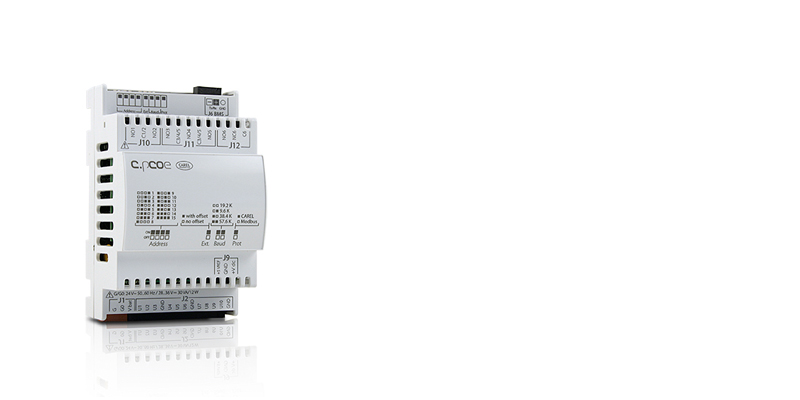

c.pCOe is the new I/O expansion board with CAREL proprietary IO chip that ensures high configurability of the channels as input (support of NTC, PTC, PT1000, voltage and current probes, digital inputs) and as outputs (0-10V, PWM).
c.pCOe board is proposed in two versions:
- basic version, featuring a total of 16 I/Os, 10 of which universal inputs on I/O chip, 6 of which output relays.
- enhanced version, same IO as basic version plus an integrated driver for unipolar expansion valve.
- Technical Leaflets * Entries are ordered by date
Code Description Language Date * Release Code +0500059IE Description P+E*: c.pCOe – Espansione controllo programmabile / Programmable controller expansion Language ENG ITA Date 12/07/2019 Release 1.3 Code +0500059FR Description P+E*: c.pCOe – Expansion commande programmable / Programmable controller expansion Language ENG FRE Date 12/07/2019 Release 1.3
- 2D/3D drawings * Entries are ordered by date
Code Description Language Date * Release Code 2d-3d cpCOe Description 2D-3D drawings Language ALL Date 01/12/2016 Release R0
- Manuals * Entries are ordered by date
Code Description Language Date * Release Code +0300057EN Description c.pCO Programmable Controller Language ENG Date 11/07/2019 Release 1.3
